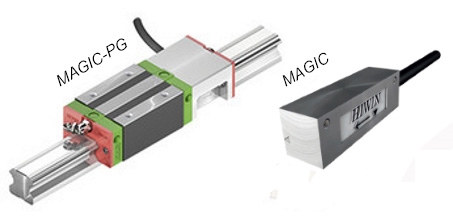

Magnetic incremental measurement HIWIN MAGIC-PG
inquiry

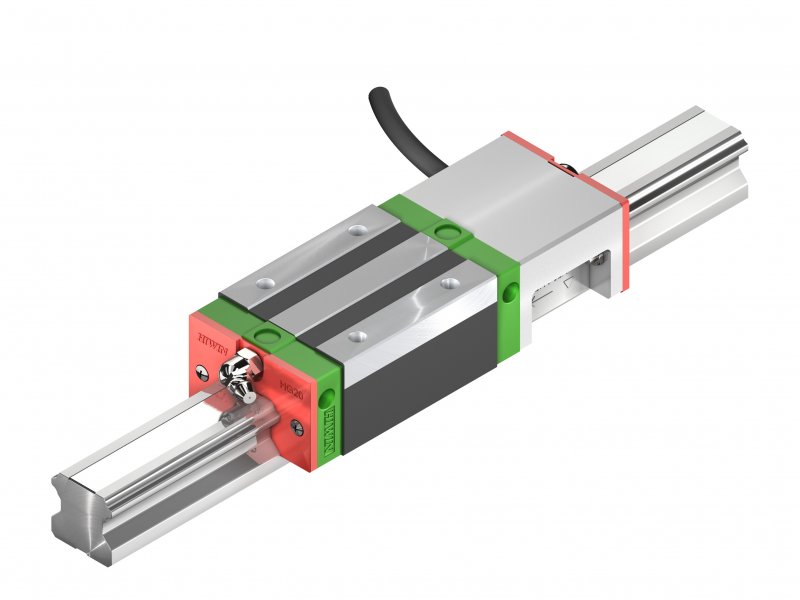

Positioning measurement system integrated in a linear guideway size HG20, 25 and QH20, 25
- Zero contact measurement with analog or digital output
- Digital resolution of up to 0.5 μm
- Encoder and housing are resistant to dust, humidity, oil and chips
- Encoder with metal housing and IP67 protection mode
- Simple assembly
- Signal output in real time
- Special housing for EMC optimization
Basic parameters encoder head measuring MAGIC-PG
| Part number | Code | For guideway | Output signal | Resolution | Repeatability bidirectional | Absolute accuracy | Operating voltage | Max. measurement speed | Cable legth [m] |
|---|---|---|---|---|---|---|---|---|---|
| 8-08-0211 | PM-B-05-0A-G-20-10 | HG-20, QH-20 | sin/cos 1Vpp | ∞, period 1mm | ± 0,003 mm | ± 20µm/m | 5V ± 5% | 10m/s | |
| 8-08-0215 | PM-B-05-0D-G-20-10 | HG-20, QH-20 | TTL dle RS 422 | 1µm | ± 0,002 mm | ± 20µm/m | 5V ± 5% | 5m/s | |
| 8-08-0118 | PM-B-05-0A-G-25-10 | HG-25, QH-25 | sin/cos 1Vpp | ∞, period 1mm | ± 0,003 mm | ± 20µm/m | 5V ± 5% | 10m/s | |
| 8-08-0119 | PM-B-05-0D-G-25-10 | HG-25, QH-25 | TTL dle RS 422 | 1µm | ± 0,002 mm | ± 20µm/m | 5V ± 5% | 5m/s |

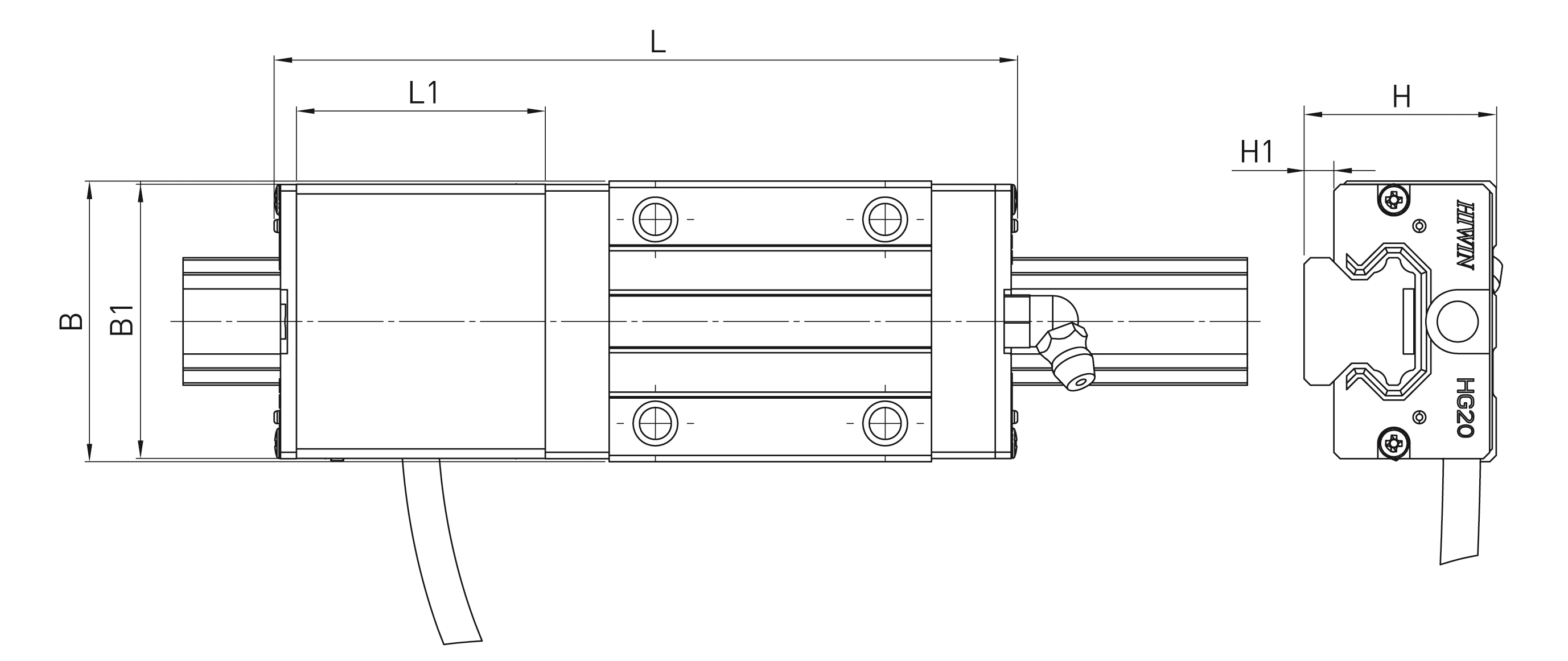

Basic dimensions encoder head measuring MAGIC-PG with block
| Part number | L [mm] | L1 [mm] | B [mm] | B1 [mm] | H [mm] | H1 [mm] |
|---|---|---|---|---|---|---|
| HG_20C | 118,0 | 41,5 | 44,0 | 43,0 | 30,0 | 4,6 |
| HG_20H | 132,7 | 41,5 | 44,0 | 43,0 | 30,0 | 4,6 |
| HG_25C | 123,0 | 39,0 | 48,0 | 46,4 | 40,0 | 5,5 |
| HG_25H | 143,6 | 39,0 | 48,0 | 46,4 | 40,0 | 5,5 |
| QH_20C | 115,7 | 39,0 | 44,0 | 43,0 | 30,0 | 4,6 |
| QH_20H | 130,4 | 39,0 | 44,0 | 43,0 | 30,0 | 4,6 |
| QH_25C | 122,4 | 39,0 | 48,0 | 46,4 | 40,0 | 5,5 |
| QH_25H | 143,0 | 39,0 | 48,0 | 46,4 | 40,0 | 5,5 |
Basic parameters positioning scale with protecting
| Part number | Code | Max. length [m] | Pole pitch [mm] | Accuracy class | Weight [g/m] |
|---|---|---|---|---|---|
| 8-08-0028-xxxx* | PS-B-0000 | 24 | 1 | ± 20µm/m | 70 |
Basic dimensions rails with groove for magnetic scale
| Part number | Rail type | W [mm] | H [mm] | D [mm] | S [mm] | h [mm] | d [mm] | P [mm] | Max. legth* [mm] |
|---|---|---|---|---|---|---|---|---|---|
| HGR20R_G1 | R | 20 | 17,5 | 9,5 | - | 8,5 | 6 | 60 | 4000 |
| HGR25R_G1C | R | 23 | 22 | 9,5 | - | 8,5 | 6 | 60 | 4000 |
| HGR20T_G1 | T | 20 | 17,5 | - | M6 | 10 | - | 60 | 4000 |
| HGR25T_G1 | T | 23 | 22 | - | M6 | 12 | - | 60 | 4000 |
* - maximum legth for rails from one pieces
Basic parameters display PMED for measuring MAGIC a MAGIC-PG
| Part number | Code | Resolution | Input signal | Operating voltage | Relay contact rating | 3D (STP) |
|---|---|---|---|---|---|---|
| 8-08-0250 | PMED-H2-1-00-1 | 1µm, 2µm, 5µm, 10µm | analog: sin/cos 1Vpp, digital: 5V RS422/TTL | 5V ±5%/1A | DC 24V/2A |  |
