Peeled ball screws

Peeled ball screws

For peeled ballscrews, a wide variety of nut designs is available as single or double nuts. Complete ballscrews can be custom manufactured with a short delivery time. Complete bearing units in conjunction with standardized spindle ends minimize the design effort. Accuracy classes P5 and P7.

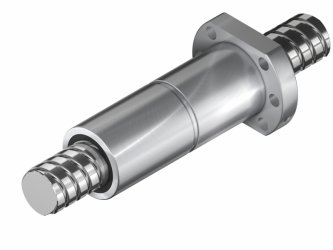

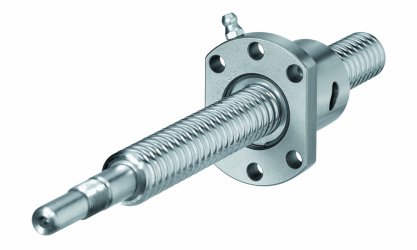

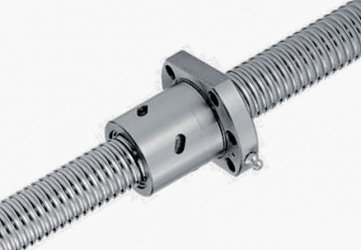

Single flanged nut DEB

Standard single flanged nut with connecting dimensions acc. to DIN 69051. Delivered with reduced play or small preload until 2% Cdyn.

Single flanged nut DEB-x

Standard single flanged nut with connecting dimensions acc. to DIN 69051. Delivered with reduced play or small preload until 5% Cdyn.

Single flanged nut DEB - left design

Standard single flanged nut with connecting dimensions acc. to DIN 69051. Delivered with reduced play or small preload until 2% Cdyn.

Double flanged nut DDB

Standard double flanged nut with connecting dimensions acc. to DIN 69051. Preloaded until 7% Cdyn.

Double flanged nut DDB-N

Standard double flanged nut with connecting dimensions acc. to DIN 69051. Preloaded until 7% Cdyn.

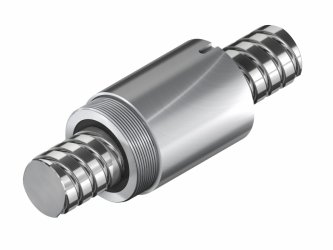

Single cylindrical nut SE with metrical thread

Single cylindrical nut with outer metrical thread. Delivered with reduced play or small preload until 2% Cdyn.

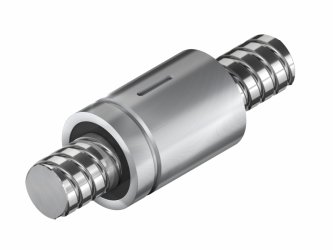

Single cylindrical nut ZE

Single cylindrical nut with both side wipers. Delivered with reduced play or on request with small preload until 2% Cdyn. Size 40x40 with right thread only.…

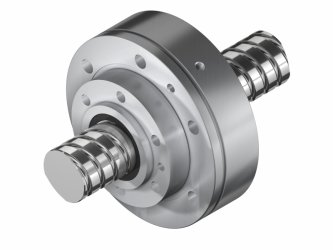

Driven nut AME

Special design for applications with static shaft and rotating nut.

Safety nut SEM

The safety nut SEM works like standard ball nut, but there is added safety part. The use of a safety nut alone is not a sufficient protection…
