LCE clamp for RG series
inquiry

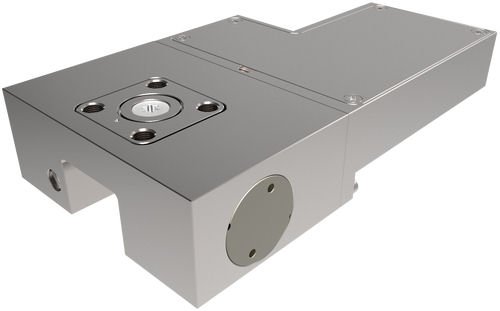

Electric clamping element for RG series.
| Part number | Rail Size |

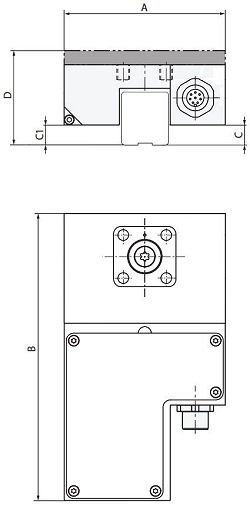

Block | Distance plate | A [mm] | B [mm] | C [mm] | C1 [mm] | D [mm] | Holding force [N] |
3D (STP) |
|---|---|---|---|---|---|---|---|---|---|---|
| LCE1512FS1-A | 15 | RGH, QRH | PMK15-4 | 55 | 93 | 4.75 | 2.85 | 28 | 400 |  |
| LCE1512FS1-A | 15 | RGW, QRW | 55 | 93 | 4.75 | 2.85 | 24 | 400 | |
|
| LCE2012FS1-A | 20 | RGH, QRH | PMK20-4 | 60 | 103 | 9 | 6 | 34 | 400 | |
| LCE2012FS1-A | 20 | RGW, QRW | 60 | 103 | 9 | 6 | 30 | 400 | |
|
| LCE2512FS1-A | 25 | RGH, QRH | PMK25-4 | 70 | 107 | 8 | 8 | 40 | 900 | |
| LCE2512FS1-A | 25 | RGW, QRW | 70 | 107 | 8 | 8 | 36 | 900 | |
|
| - | 30 | RGH, QRH, RGW, QRW | ||||||||
| - | 35 | RGH, QRH, RGW, QRW | ||||||||
| - | 45 | RGH, QRH, RGW, QRW | ||||||||
| - | 55 | RGH, QRH, RGW, QRW | ||||||||
| - | 65 | RGH, QRH, RGW, QRW |
