LCE clamp for HG series
inquiry

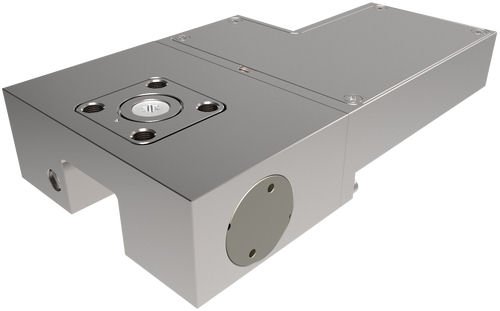

Electric clamping element for HG series.

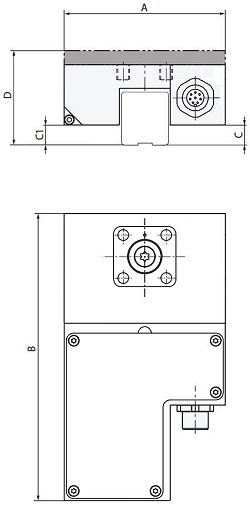

| Part number | Rail Size |
Block | Distance plate | A [mm] | B [mm] | C [mm] | C1 [mm] | D [mm] | Holding force [N] |
3D (STP) |
|---|---|---|---|---|---|---|---|---|---|---|
| LCE1512ES1-A | 15 | HGH, QHH | PMK15-4 | 55 | 93 | 4.75 | 2.85 | 28 | 400 |  |
| LCE1512ES1-A | 15 | QHW, HGL, HGW | 55 | 93 | 4.75 | 2.85 | 24 | 400 | |
|
| LCE2012ES1-A | 20 | HGH, HGW, QHH, QHW | PMK20-2 | 60 | 103 | 7 | 4 | 30 | 400 | |
| LCE2512ES1-A | 25 | HGH, QHH | PMK25-6 | 75 | 107 | 6 | 6 | 40 | 900 | |
| LCE2512ES1-A | 25 | HGL, HGW, QHW | PMK25-2 | 75 | 107 | 6 | 6 | 36 | 900 | |
| LCE3012ES1-A | 30 | HGH, QHH | PMK30-5 | 90 | 110 | 8 | 5 | 45 | 1400 | |
| LCE3012ES1-A | 30 | HGL, HGW, QHW | PMK30-2 | 90 | 110 | 8 | 5 | 42 | 1400 | |
| - | 35 | HGH, HGW, QHH, QHW | ||||||||
| - | 45 | HGH, HGW, QHH, QHW | ||||||||
| - | 55 | HGH, HGW, QHH, QHW | ||||||||
| - | 65 | HGH, HGW, QHH, QHW |
