Rail HGR type T (mounting from bottom) inquiry

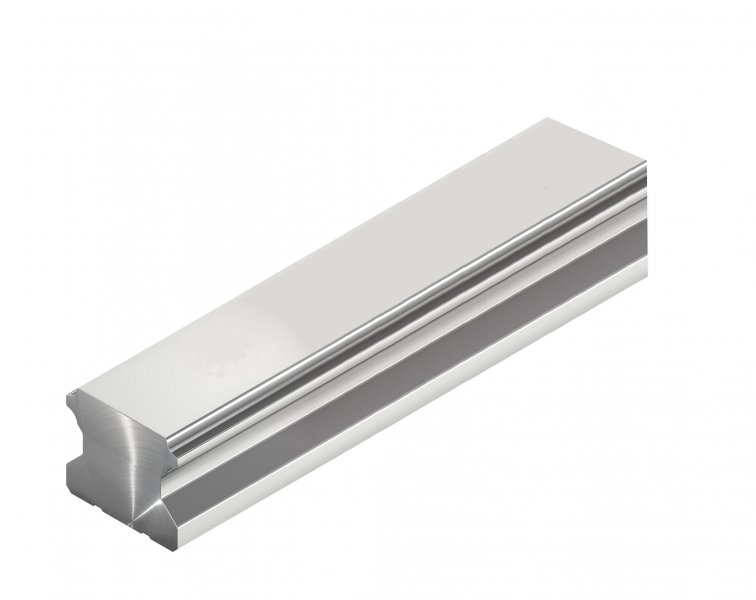

Rail type T for fastening from below





Part number WR HR S H P E1/2 min E1/2 max 3D (STP)
HGR15T 15 15 M5 8 60 6 54
HGR20T 20 17,5 M6 10 60 7 53
HGR25T 23 22 M6 12 60 8 52
HGR30T 28 26 M8 15 80 9 71
HGR35T 34 29 M8 17 80 9 71
HGR45T 45 38 M12 24 105 12 93
HGR55T 53 44 M14 24 120 14 106
HGR65T 63 53 M20 30 150 15 135

The rails are shortened to the requested length. If no information of the E1/2 dimensions is provided, then the rails are manufactured symmetrically with maximum number of fixing holes.
