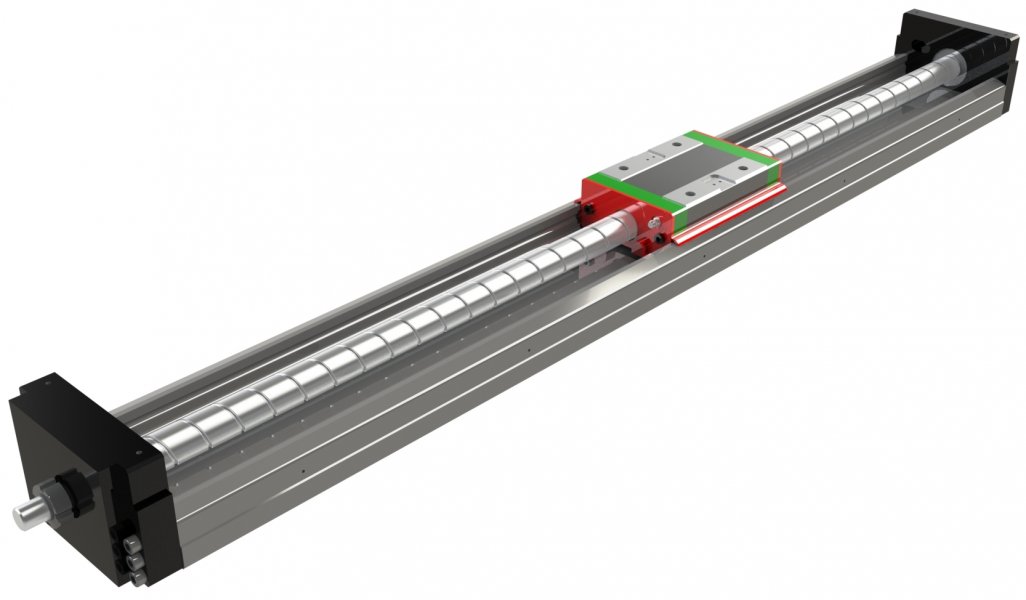

HIWIN - linear equipment

• With 100 mm
• Ball screw 20x20
• Rail length from 980 to 1380 mm
• Max. speed up to 1120 mm/s

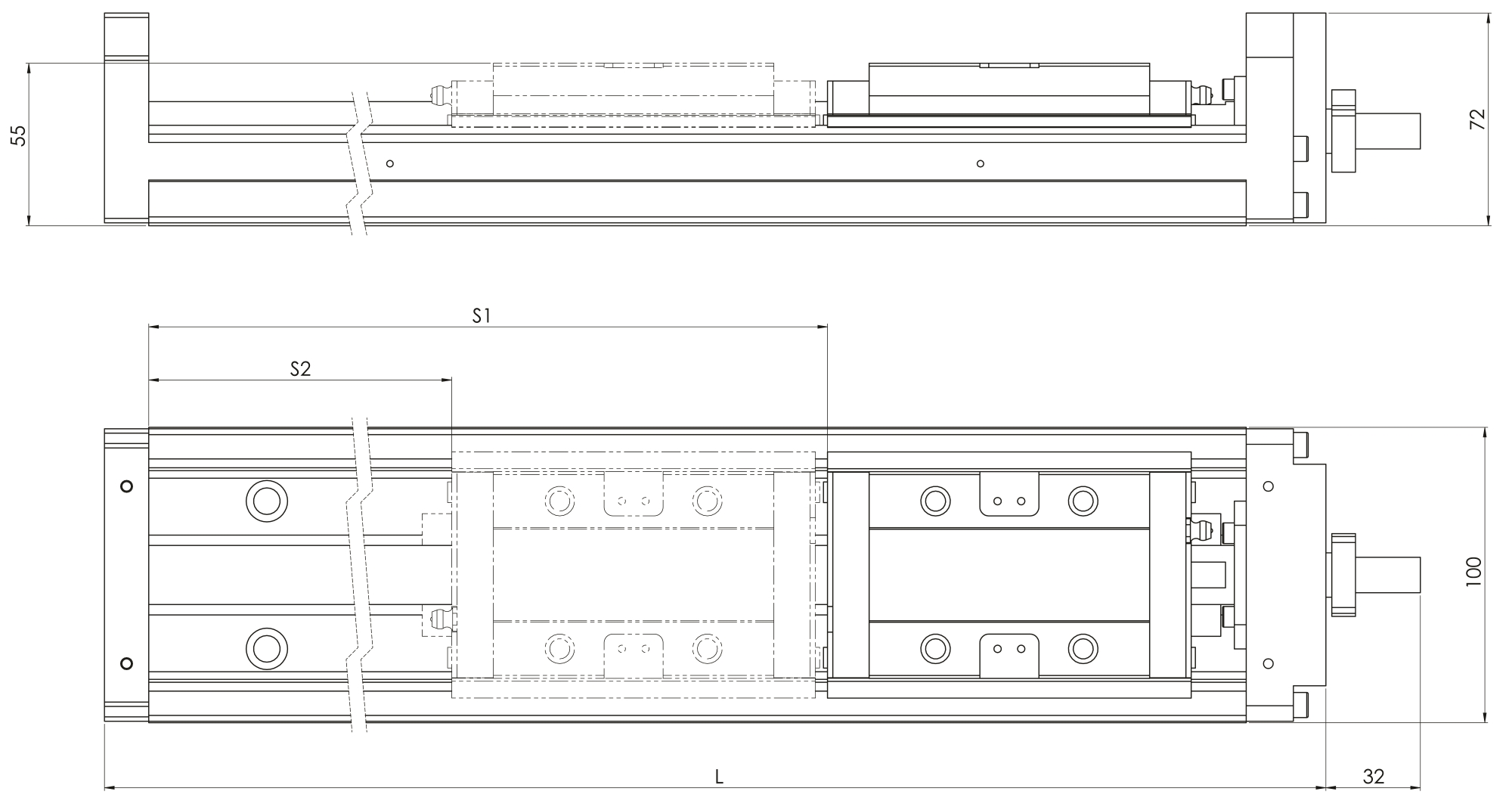

KK100 type H - without cover

Part number	Cdyn [N]	Cstat [N]	L [mm]	S1 [mm]	S2 [mm]	Number of blocks	Weight [kg]	3D (STP)
KK10020x-980A1-H000	39200	63406	1022	828	-	1	18,6
KK10020x-980A2-H000	78400	126812	1022	-	700	2	20,3
KK10020x-1080A1-H000	39200	63406	1122	928	-	1	20,3
KK10020x-1080A2-H000	78400	126812	1122	-	800	2	22
KK10020x-1180A1-H000	39200	63406	1222	1028	-	1	22
KK10020x-1180A2-H000	78400	126812	1222	-	900	2	23,7
KK10020x-1280A1-H000	39200	63406	1322	1128	-	1	23,6
KK10020x-1280A2-H000	78400	126812	1322	-	1000	2	25,3
KK10020x-1380A1-H000	39200	63406	1422	1228	-	1	25,3
KK10020x-1380A2-H000	78400	126812	1422	-	1100	2	27

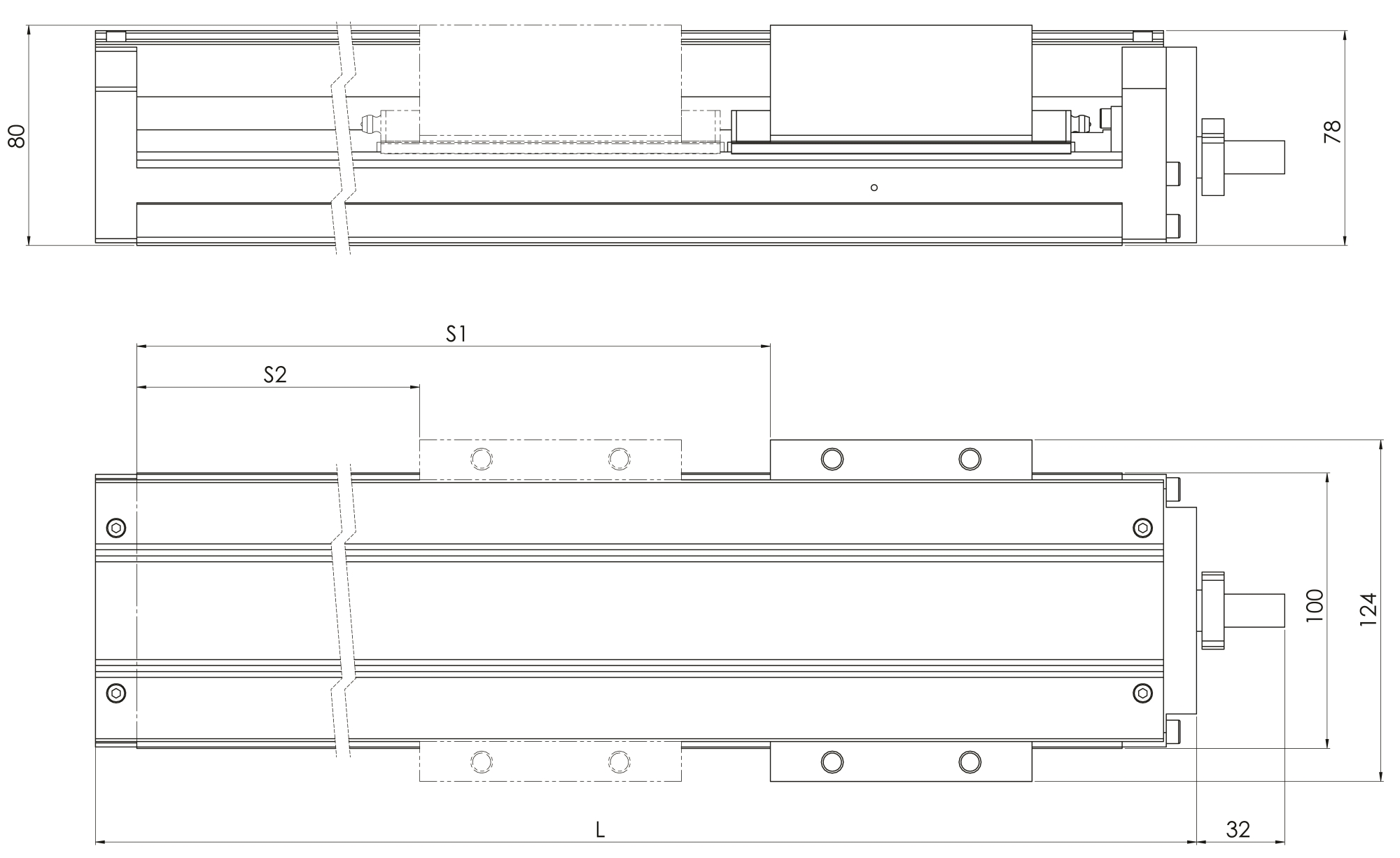

KK100 type H - with aluminium cover

Part number	Cdyn [N]	Cstat [N]	L [mm]	S1 [mm]	S2 [mm]	Number of blocks	Weight [kg]	3D (STP)
KK10020x-980A1-H0C0	39200	63406	1022	828	-	1	20,4
KK10020x-980A2-H0C0	78400	126812	1022	-	700	2	22,1
KK10020x-1080A1-H0C0	39200	63406	1122	928	-	1	22,2
KK10020x-1080A2-H0C0	78400	126812	1122	-	800	2	23,9
KK10020x-1180A1-H0C0	39200	63406	1222	1028	-	1	24
KK10020x-1180A2-H0C0	78400	126812	1222	-	900	2	25,7
KK10020x-1280A1-H0C0	39200	63406	1322	1128	-	1	25,7
KK10020x-1280A2-H0C0	78400	126812	1322	-	1000	2	27,4
KK10020x-1380A1-H0C0	39200	63406	1422	1228	-	1	27,5
KK10020x-1380A2-H0C0	78400	126812	1422	-	1100	2	29,2
