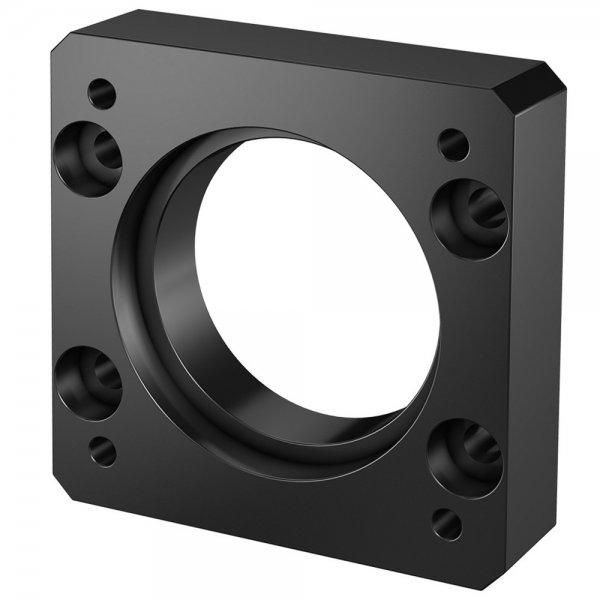

Flanges for motors / KK50
търсене
Linear KK axes can be supplied including flanges for different types and manufacturers of servomotors or stepper motors. If no flange dimension is not correct, it is possible to produce a special "customer" motor flange.

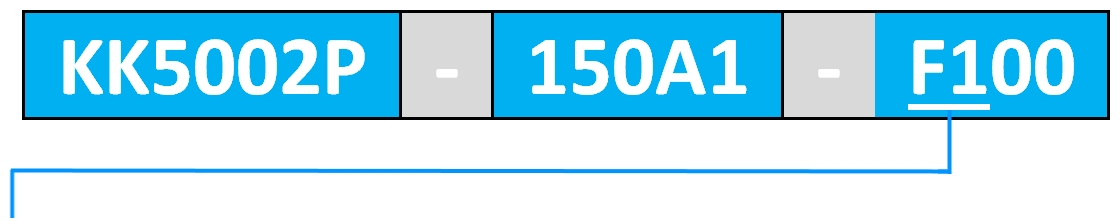

Example ordering code linear axis KK:
F0 - standard design without motor flange
F1 - with motor flange type F1
F2 - with motor flange type F2
.
.
H0 - standard flange F0 replaced by a flange H0 - with free shaft (for pulley, gearbox, ....)
Fx - with a special customer motor flange, if it is not possible to select from standard dimensions
| Part number | Servo Hiwin | Steppe motor | Flange type Nema | 3D (STP) |
|---|---|---|---|---|
| KK-50-F0 | - | - | - | |
| KK-50-F1 | - | - | - |  |
| KK-50-F2 | FRLS05, FRLS10 | - | - | |
| KK-50-F3 | - | Serie PKP24 | NEMA17 | |

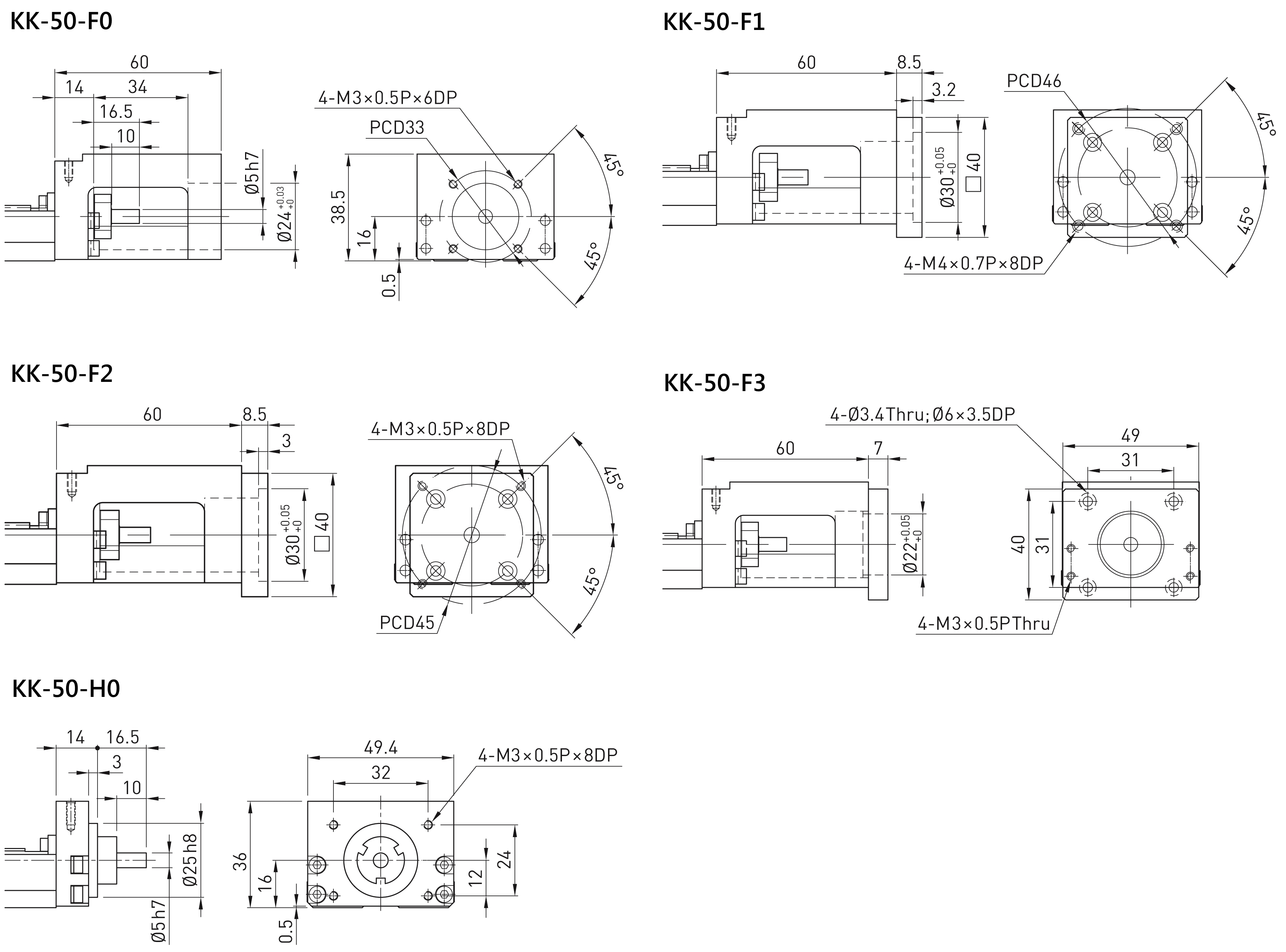

Dimensions flanges for KK50
